Material: | Sheet aluminium |
Type of protection: | IP44 |
Approvals: | CCC CE |
Insulation Class: | B |
If you have any questions, we will give professional and reasonable price as soon as possible.

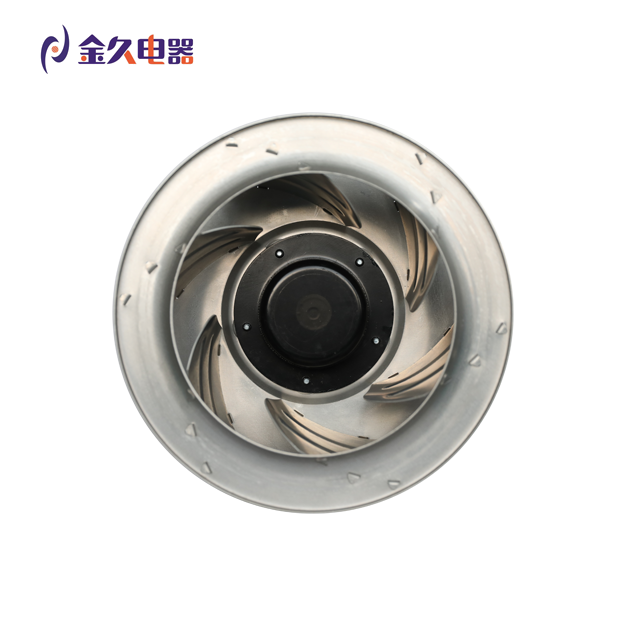

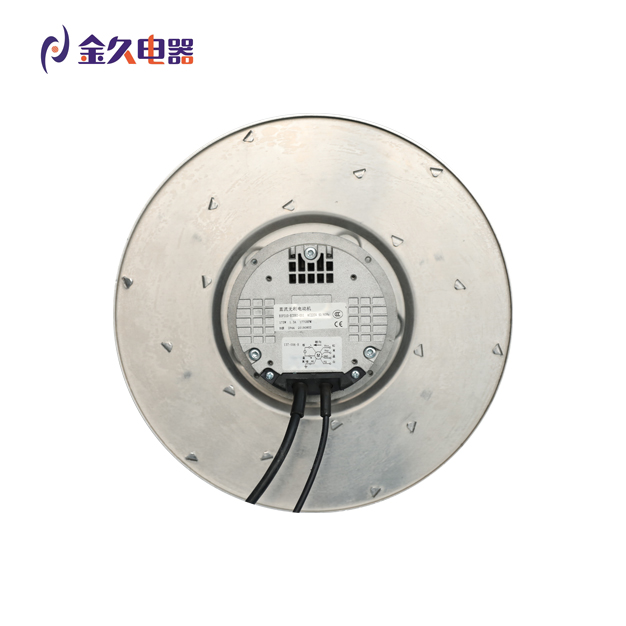

Home / Product / Centrifugal fan / DC Centrifugal Fan / Φ 355 DC Backward Curved Centrifugal Fans
Material: | Sheet aluminium |
Type of protection: | IP44 |
Approvals: | CCC CE |
Insulation Class: | B |
Type | Curve |
Nominal
voltage
|
Frequency
|
Speed | Power input | Current draw | Sound pressure level | Perm.amb.temp. |
(VDC) | (Hz) | (rpm) | (W) | (A) | (dB) | (℃) | ||
B3P355-EC102-001 | ① | 220 | 50/60 | 1750 | 310 | 1.4 | 73 | -25~+60 |
SIGNAL | COLOR | SPEC |
L | BROWM |
AC220V
50/60Hz
|
N | BLUE |
AC220V
50/60Hz
|
PE | YELOW/GREEN | EARTH |
SIGNAL | COLOR | SPEC |
Vcc | RED | DC10V |
Vsp | YELLOW | 0-10VDC/PWM |
GND | BLUE | GND |
FG | WHITE | 12 Pulse/R |
